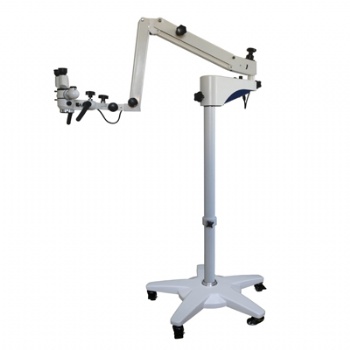

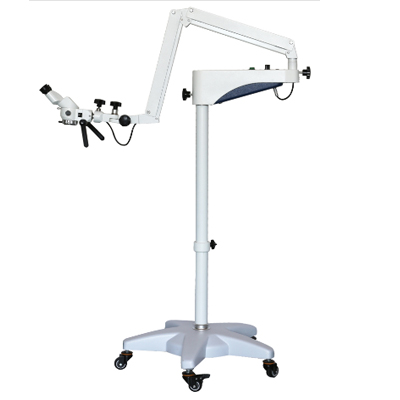

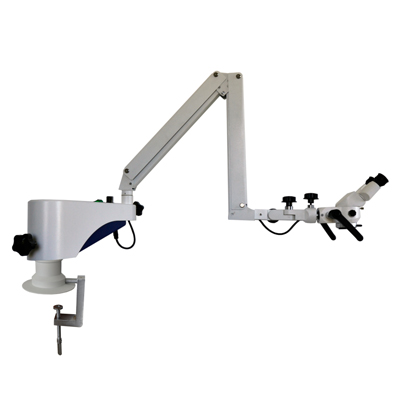

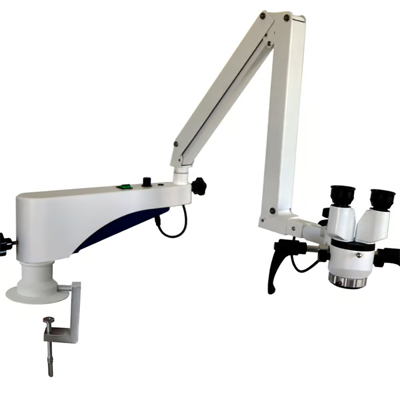

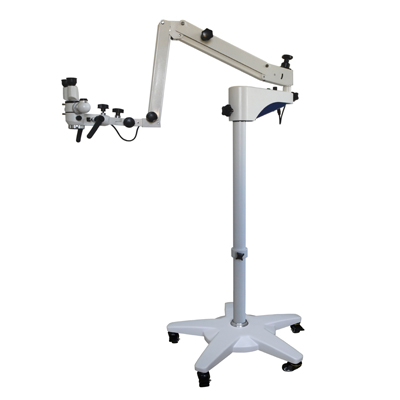

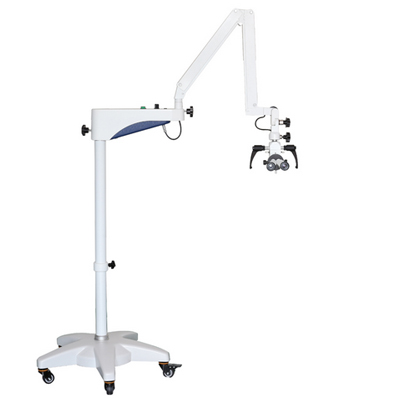

YSX Series Operation Microscopes
YSX Series Operation Microscopes using LED light source for coaxial illumination, have different working distance and magnification. They are featured for flexible handling and easy operation. They can be sued for micro-operation in ear-nose-throat, dental, ophthalmology, gynecology and surgery.
| Performance Parameters of Operation Microscopes series | |||||

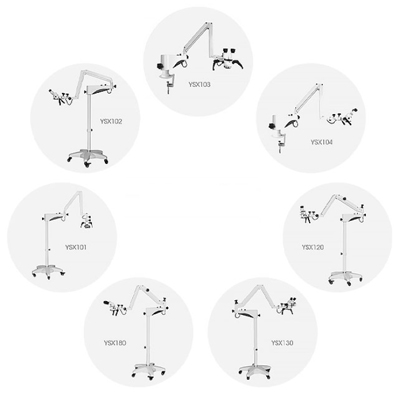

| Model | YSX101 | YSX102 | YSX120 | YSX130 | YSX180(12.5XEyepiece) |
| Observation angle | Straight | 45°inclined | Straight | 45°inclined | 0-180°Variable angle binocular tube |
| Magnificating rate of obvervation tube | 6X | 8.3X | |||
| Rang of Pupillary distance | 50mm-80mm | 49mm-80mm | |||
| Diopter adjustment range | ±5D | ||||
| Fixe-focus large objective lens | F=200mm and F=250mm; with fine adjustment device, adjustment range ±10mm | ||||
| Magnification changer | Three gear zoom: 0.6X, 1X, 1.6X | ||||
| Total magnification | 16mm-81mm | 13mm-66mm | 16mm-81mm | 13mm-66mm | 15mm-80mm |
| Linear field | 2.4X-12X | 3X-16X | |||
| Beamsplitter | No Nil | Splitter 2:8 (optional 5:5) | |||
| Camera adapter | No Nil | Can be connected to C-mount 1/3 inch CCD camera | |||
| Illumination system | Coaxial LED lighting, adjustable brightness, illuminance＞40,000LX, lifespan＞50,000 hours | ||||
| Filter | Built-in green and orange filters | ||||
| Balanced arm | 2 arms, with universal adjustment | 2 arms, with universal adjustment, adjustable weight and lock | |||
| Fool stand | Two-section column, five-star base | ||||
| Input power | Adapter output: DC12V/3A; power: 36W | ||||
| Weight per unit | 59KG (1 set and 2 boxes) | 63KG (1 set and 2 boxes) | 64KG (1 set and 2 boxes) | ||
YSX Series Operation Microscopes using LED light source for coaxial illumination, have different working distance and magnification. They are featured for flexible handling and easy operation. They can be sued for micro-operation in ear-nose-throat, dental, ophthalmology, gynecology and surgery.
