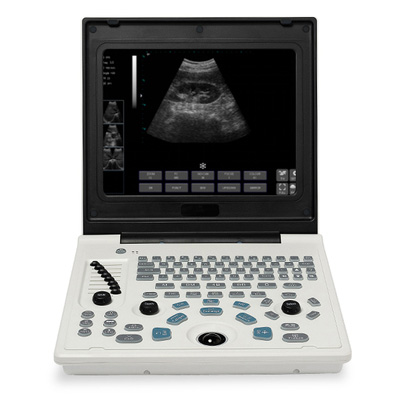

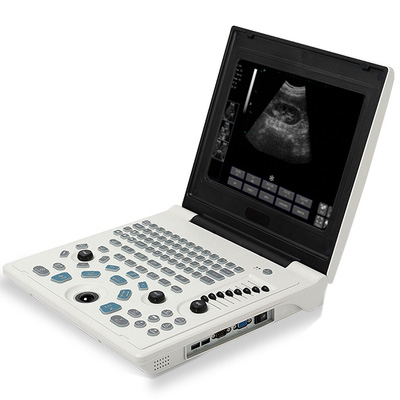

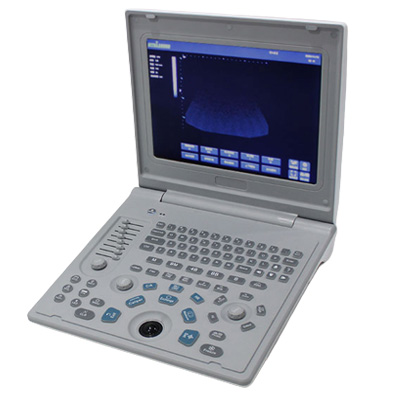

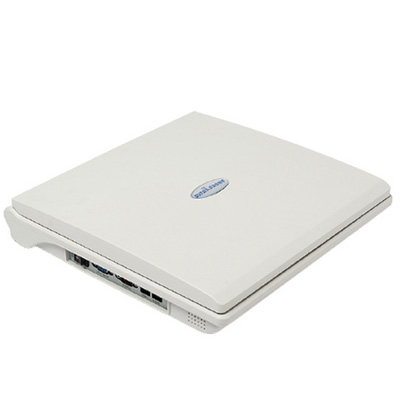

IMGX-60 Full Digital Ultrasound Scanner

IMGX-60 uses the ARM chip architecture to provide rich image processing and measuring package software.Including abdomen, heart, urology, gynecology, obstetrics, small organs, blood vessels, musculoskeletal and others, which can monitor gestational week (BPD, GS, CRL, FL, HC, AC, EDD, AFI) and expected date of delivery, fetal weight , last menstrual period, etc;

1. Operating system: using ARM chip architecture, stable, concise and powerful

2. Display: 12-inch 1024*768 resolution high-definition LED LCD screen

3.Imaging modes: B, B+B, B+M, M, 4B

Probe array element: automatically identify and use a variety of array element probe(80 elements,96 elements,128 elements)

4.Image preset: The system combines a large amount of clinical experience, has different preset adjustment conditions for the parts or organs, and has a one-key optimization function

5.Cine playback: ≥256 frames

6.Image storage: ≥300 frames.External USB storage,Single image storage time≤about 9s.(Storage speed is related to the USB device used)

7.Scanning angle adjustment: adjustable

8.Image enlargement: Separate knob depth adjustment (≥about 20 levels adjustable)

9.Puncture: with puncture guide line, angle and position are adjustable

10.Focus: more than 5 levels of focus position adjustment

11.Image adjustment: up and down, left and right, brightness, focus number, focus position, dynamic range, scan angle, frame correlation, M speed

12.Image Processing: image smoothing/sharpening, tissue harmonics, gamma correction, false color

13.Notes and characters: date, clock, name, age, gender, doctor, hospital name, image annotation

14.Position mark: ≥97 kinds

15.Measurement function

a) Routine measurement: distance, circumference, area, volume;

b) Heart measurement: left atrium, right atrium, left ventricle, right ventricle, aorta, descending aorta, aortic isthmus;

c) Obstetric measurement: gestational sac, biparietal diameter, head circumference, abdominal circumference, femur length, fibula length, head hip diameter, yolk sac, abdomen, cerebrum, cerebellum, amniotic fluid, gestational age, expected date of delivery, fetal weight, etc;

d)Gynecological measurement: uterus, cervix, endometrial thickness, ovaries, follicles;

e)Urology measurement: kidney, adrenal gland, prostate, testicular mass, epididymis, etc;

f)Pediatric measurement: common liver duct, common bile duct, pancreas, spleen, kidney, adrenal gland, etc;

g)Small organ measurement: thyroid, seminal vesicle, testis, scrotum, breast mass, skin mass, etc.

The instrument has different ethnographic measurement formulas.

16.Report function: automatically generate reports on abdomen, urology, obstetrics, heart, etc

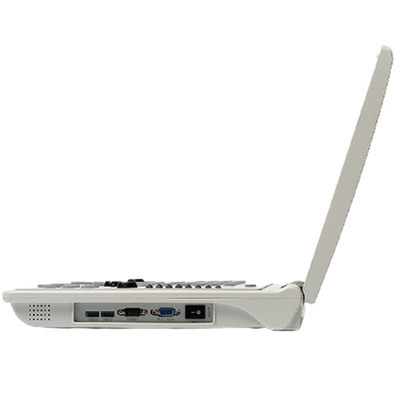

17.External interface: VGA interface, USB2.0 interface, RS232 interface

18.Power saving mode: the panel button light can be turned on and off by one button, and the instrument will automatically turn off the power if it is not used for 6 minutes. Press any key to resume operation
