Light guide cable

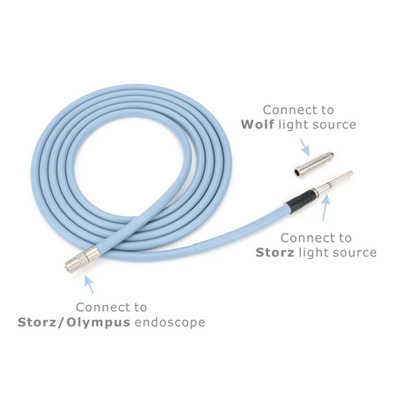

This fiber cable can connect to different rigid endoscope of storz, olympus, wolf, etc, with different adapter. It can also connect to different light source.

A compound glass optical fiber consists of a core with high refractive index and a cladding with lower refractive index, drawn by double - crucible process or rod-in-tube process.

According to different applications, with rational design and delicate manufacture, using advanced technology, we can provide various of glass optical fiber products, with transmissivity more than 56% per meter. Glass optical fiber itself is an inorganic material, which is resistant to temperature higher than 500℃. The heat resistance of glass optical fiber products thus depends on epoxy and sheath material.

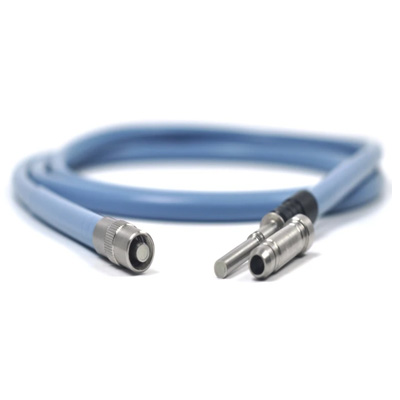

We have 2m, 2.5m 3m fiber cable, length is customizable. And the cable can connect to wolf, storz, olympus.

Core dia/mm: 3.5/4.0/4.5/5.0

Length/m: 1.8/2.0/2.5/3.0
