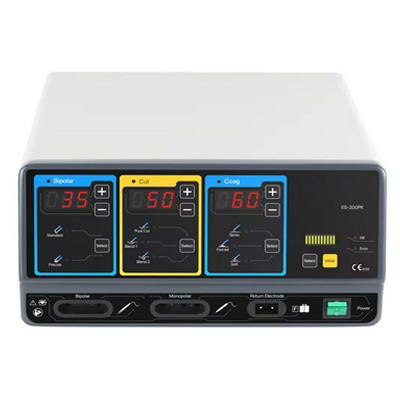

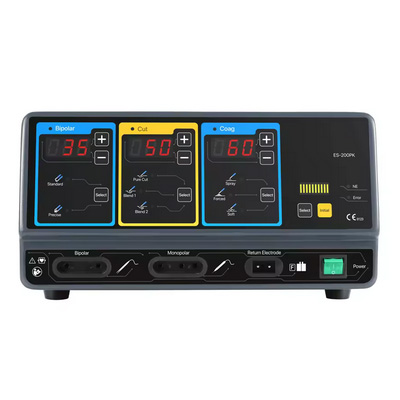

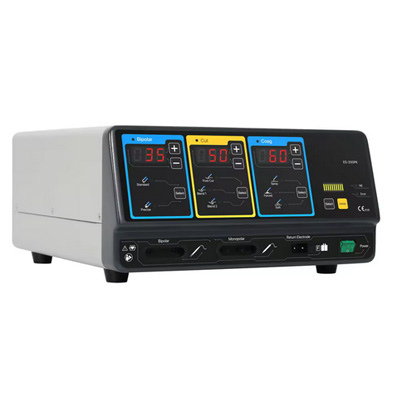

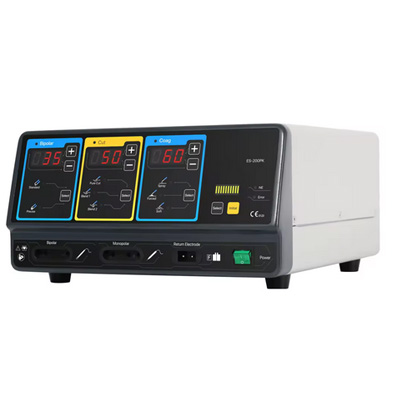

Electrosurgical Generator
Multifunctional Electrosurgical Generator for General Surgery, Orthopedic, Gynecological, ENT, Neurosurgery, Skin Plastic, Oral and Maxillofacial Surgery.
Mode | Max Output Power(W) | Load impedance (Ω) | Modulation Frequency (kHz) | Max Output Voltage (V) | Crest Factor | ||
Monopolar | Cut | Pure Cut | 200/400 | 500 | —— | 1050 | 1.3 |
Blend 1 | 200 | 500 | 25 | 1350 | 1.6 | ||
Blend 2 | 150 | 500 | 25 | 1200 | 1.6 | ||
Coag | Spray | 120 | 500 | 25 | 1400 | 1.6 | |
Forced | 120 | 500 | 25 | 1400 | 2.4 | ||
Soft | 120 | 500 | 25 | 1400 | 2.4 | ||
| Bipolar | Standard | 100 | 100 | —— | 400 | 1.5 | |
Fine | 50 | 100 | —— | 300 | 1.5 | ||
