Tinyview 1000s endoscope camera system
3 In 1 Medical Full HD Endoscope Camera with 30W LED Cold Light Source and 11.6 Inch Monitor

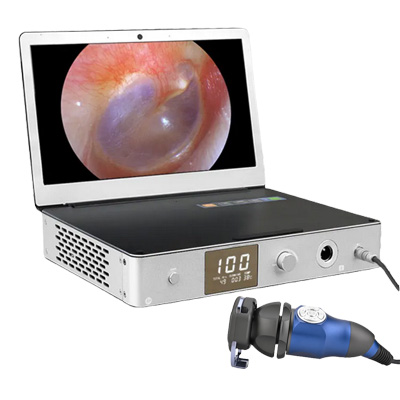

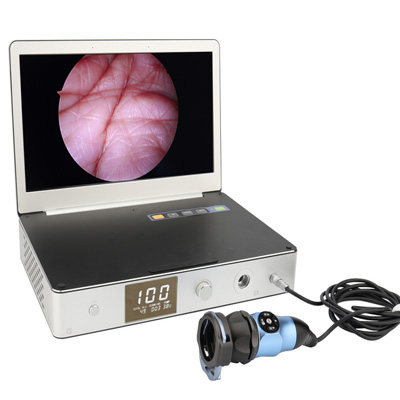

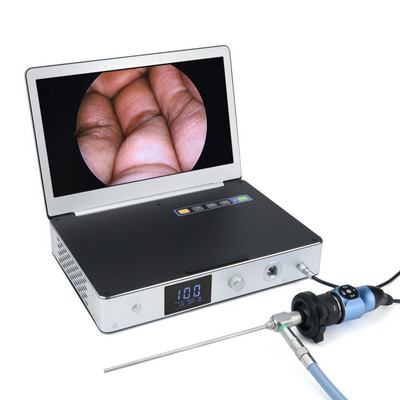

All-in-one Endoscopy Camera System
1080P camera+30W led light source with 2m fiber optic guide cable+11.6 inch medical monitor
5-WAY BUTTOM: White balance lock, freeze, model switch shortcuts
Press"M" key to access camera menu the 4 shortcus changed to be direction keys
More then 50,000 hours life and 26DB low noise
Support: Windows, MAC OS, LINUX
Image | |
Endoscope camera Data Sensor | 1/2.8” Sony CMOS |
Camera Pixels | 2,130,000 Pixels |
Output Interface | Endoscope with HDMI,USB |
Output Resolution | 1920*1080/ 30 fps |
White Balance | Auto/Auto ext/Preset/Manual |
Image Freeze | Yes |
Brightness Adjustment | Yes |
SNR | >50dB(AGC off |
Scanning Mode | Progressive Scanning |
Min-illumination | 0.00017LUX |
Digital Noise Reduction | Yes |
ACE&WDR | Off/Low/Middle/High; WDR SNR:120Db |
Image Mirror | Yes |
Image Position | Vertical |
Back Light Compensation | Yes |

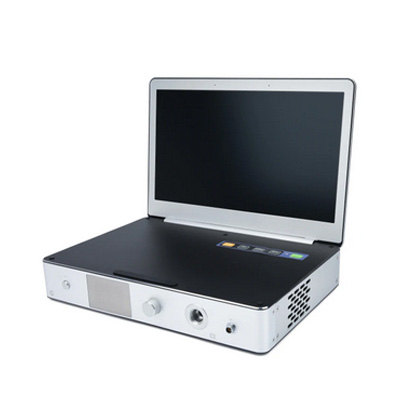

Screen Data | |
Screen Siz | 11.6 inch |
LCD resolution | 30W |
Lux | >2,000,000Lux |

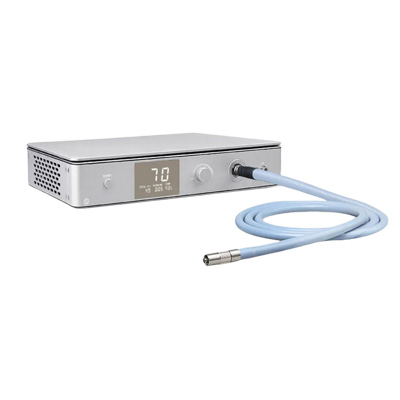

Light Source Data | |
Light Source | LED |
Power Assumption | 300W |
Lux | >2,000,000Lux |
System Data | |
Total Power Assumptio | 140W |
Input Voltage | AC110V-250V 50/60Hz |
Noise | <26dB |
Environment | 5-40℃ |
Dimension | 280mm*190mm*52mm |
Net weight | 2kg |
